Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

Name: Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure
Brand: Tiger
Price: 1 USD

Quality Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure wholesale

Brand Name : Tiger

Model Number : TG-TI001

Certification : ISO, CE,UL, RoHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : around 20 days

Packaging Details : Carton/Pallet

Inductance tested : 100KHz 0.25V

Temperature rise : 40℃

Operating Temp Range : -40℃ to +105℃

Size : 15mm

OEM : Accepted

Quality : winding toroidal inductors

Contact Now

Toroid Choke Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

Features:

For use in high frequency DC/DC converters
Low radiation
Low core loss
Current handling up to 31 Amps
Energy storage of 740 µJ
Axial or radial types available

Specifaction :

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

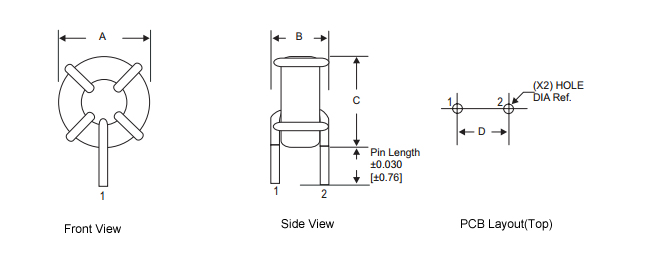

Mechanical Specifications

YATA Part Number	Amax (mm)	B max (mm)	C Max (mm)	D Ref (mm)	Pin Length (mm)	Hole Dia (mm)
T60020	20.32	13.21	19.05	9.65	6.35	2.16
T60017	20.32	12.70	18.54	10.16	6.35	2.54
T60004	20.50	9.50	18.50	7.50	3.40	2.40
T60L18	21.08	12.45	20.32	8.38	6.35	2.16
T60032	21.00	11.00	21.00	9.00	5.00	2.26

Electrical specifications

YATA Part Number	DCR (Ωmax)	I rating (amp)	Tol (±%)	Fre (Khz)
T60020	0.00110	31.00	±20%	100
T60017	0.00120	30.00	±15%	100
T60004	0.00165	25.00	±20%	100
T60L18	0.00204	26.00	±15%	100
T60032	0.00200	26.00	±20	1.

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

Application:

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

Packing:

FAQ

1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 10 days. Formal order needs around 20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.

6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure

Product Tags:

toroidal power inductor

ferrite core inductor

Toroidal Choke Coil Minimizes Magnetic Leakage Toroidal Transformer Firm Structure Images
